Lithium Polymer Battery Pack 901765 3.7V 1000mAh 3.7wh Rechargeable Power Lipo Batteries

Lithium Polymer Battery Pack 901765 3.7V 1000mAh 3.7wh Rechargeable Power Lipo Batteries

Main parameters:

Product model: LP901765
Nominal capacity: 1000mAh
Product size: 9.0x17x65mm
Rated voltage: 3.7V
Charging voltage: 4.2V
Charging temperature: 0 ° C~45 ° C
Discharge temperature: -20 ° C~+60 ° C
Storage temperature: -20 ° C~+35 ° C
Charging current: Standard charging: 0.5C, fast charging: 1.0C
Standard charging method: Charge to 4.25V at 0.5C CC (constant current),
Charge again with CV (constant voltage 4.2V) until the charging current is ≤ 0.05C
Maximum charging current: 1C
Maximum discharge current: 1C
Protection IC parameters: overcharge protection voltage 4.20V ± 0.05V
Over discharge protection voltage 2.7V ± 0.1V

Product features:

1. High security performance

2. Thin thickness, adjustable thickness

3. Lightweight

4. High energy density, compared to other types of lithium batteries, the same size capacity can be achieved

5. Low internal resistance and long cycle life

6. Flexible size available

7. Good discharge performance

Application areas:

Portable devices: such as power banks, Bluetooth devices, and small drones. ‌

Medical equipment: such as laser rangefinders, baby wipes insulation machines. ‌

Consumer electronics: such as smartwatches, Bluetooth earphones

Product pictures:

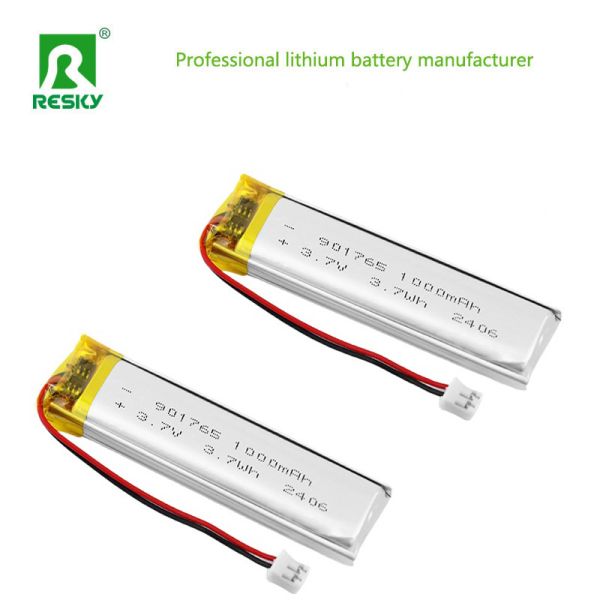

3.7V 1000mAh lithium polymer battery

rechargeable LiPo battery pack

901765 lithium polymer power battery

Lithium Polymer Battery Pack 901765 3.7V 1000mAh 3.7wh Rechargeable Power Lipo Batteries Images
